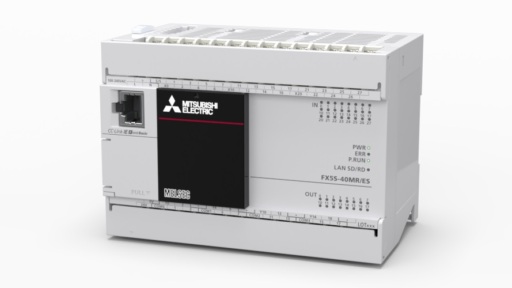

Material number 685464
PLC CPU Module; iQ-F; AC; 24 Inputs 24 V DC; 16 Relay Outputs
| Type | FX5S |
|---|---|
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Program Memory | 48K STEPS |
| Program Memory Unit | FLASH |
| Integrated Digital Inputs | 24 |
| Integrated Digital Outputs | 16 |
| Output Type | RELAY |
| Cycle Time LD (ns) | 84 |
| Cycle Time MOV (ns) | 100 |
| Ethernet Port | 1 |
| Power Consumption (W) | 30 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
| Series | MELSEC IQ-F SERIES |
| Weight (kg) | 0,45 |
|---|
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 142,7 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0,6 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 629-14-1, 7439-92-1, 12060-00-3, 29420-49-3 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
