    315635-FX5-C32ET/DS-TS

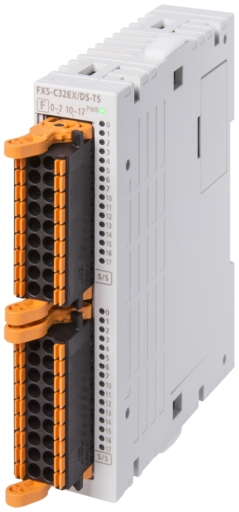

    315635 - FX5-C32ET/DS-TS

    Material number 315635

    FX5UC;I/O Extension;16 Inputs;16 Transistor Outputs;spring clamp;sink

    Request for Quote Add to List
    FA-COM PLC: DIGITAL I/O MODULE
    Series MELSEC IQ-F SERIES
    Type I/O COMBINED MODULE
    Power Supply (V) 24
    Current Type DC
    Occupied I/O Points on PLC 32
    Integrated Digital Inputs 16
    Integrated Digital Outputs 16
    Output Type TRANSISTOR
    Output Logic SINK
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 93,7
    Weight (kg) 0,15
    Width (mm) 20,1
    Height (mm) 90
    CONFORMITY
    CE COMPLIANT
    Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 51
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 0
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 12060-00-3, 7439-92-1, 71868-10-5
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
