    325715-FX5-4DA

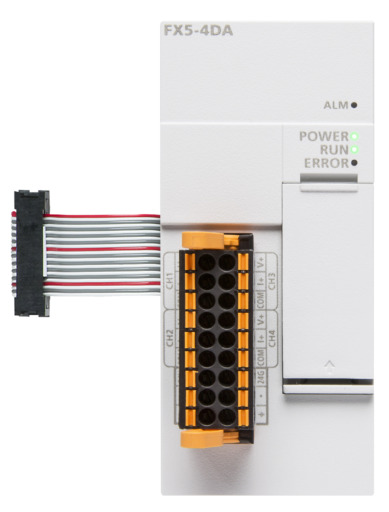

    325715 - FX5-4DA

    Material number 325715

    FX5;Analog Output Module;4 channels

    Request for Quote Add to List
    FA-COM PLC: ANALOGUE I/O MODULE
    Series MELSEC IQ-F SERIES
    Type ANALOG OUTPUT
    Power Supply (V) 24
    Current Type DC
    Integrated Analogue Outputs 4
    Output Voltage Range (V) -10-10; 0-10; 0-5; 1-5
    Output Current Range (mA) 0-20; 4-20
    Min. Ambient Temperature (°C) 0
    Max. Ambient Temperature (°C) 55
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 102,2
    Weight (kg) 0,2
    Width (mm) 40
    Height (mm) 90
    CONFORMITY
    CE COMPLIANT
    Shipping Approvals ABS,BV,DNV GL,LR,NK
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 60
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 0
    Wood (g) 0
    Other paper (g) 34
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 7439-92-1, 1303-86-2, 71868-10-5, 3896-11-5
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
