    597209-FX5-4A-ADP

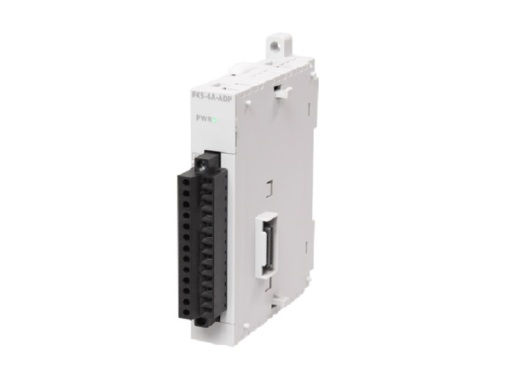

    597209 - FX5-4A-ADP

    Material number 597209

    FX5 Analog I/O expansion adapter; 2 inputs, 2 outputs; voltage/current

    Request for Quote Add to List
    FA-COM PLC: ANALOGUE I/O MODULE
    Series MELSEC IQ-F SERIES
    Type ANALOG I/O COMBINED MODULE
    Power Supply (V) 24
    Current Type DC
    Occupied I/O Points on PLC 0
    Integrated Analogue Inputs 2
    Integrated Analogue Outputs 2
    Input Voltage Range (V) -10-10; 0-10; 0-5; 1-5
    Input Current Range (mA) -20-20; 0-20; 4-20
    Output Voltage Range (V) -10-10; 0-10; 0-5; 1-5
    Output Current Range (mA) 0-20; 4-20
    Min. Ambient Temperature (°C) -20
    Max. Ambient Temperature (°C) 55
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 89,1
    Weight (kg) 0,1
    Width (mm) 17,6
    Height (mm) 106
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 51,7
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 0
    Wood (g) 0
    Other paper (g) 12,5
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 71868-10-5, 80-05-7, 1303-86-2, 7439-92-1
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
