    210090-FX3UC-4AD

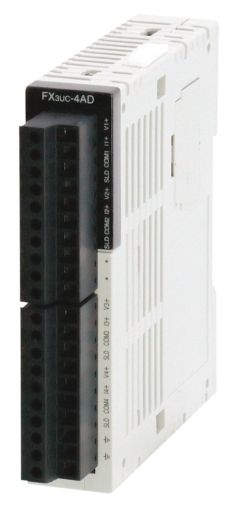

    210090 - FX3UC-4AD

    Material number 210090

    PLC, FX3UC Analog input module; 16 bit; 4 analog inputs for current or voltage

    Request for Quote Add to List
    FA-COM PLC: ANALOGUE I/O MODULE
    Series MELSEC-F SERIES
    Type FX3UC
    Power Supply (V) 24
    Current Type DC
    Occupied I/O Points on PLC 8
    Integrated Analogue Inputs 4
    Input Voltage Range (V) -10-10
    Input Current Range (mA) -20-20;4-20
    Min. Ambient Temperature (°C) 0
    Max. Ambient Temperature (°C) 55
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 89
    Weight (kg) 0,13
    Width (mm) 20,2
    Height (mm) 90
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 71
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 0
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 7439-92-1, 71868-10-5, 80-43-3
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
