Material number 232806

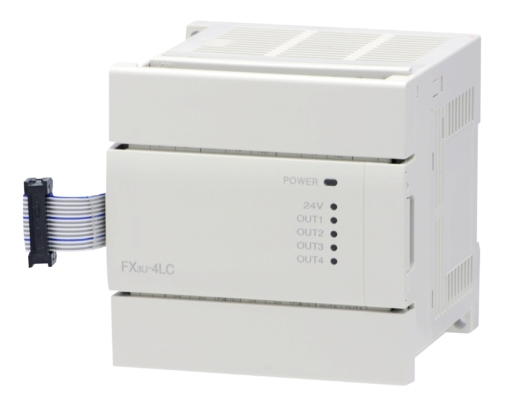

PLC, FX3U Temperature control module, 4 inputs, 4 transistor outputs, PID loop
| Series | MELSEC-F SERIES |
|---|---|
| Type | FX3U |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied I/O Points on PLC | 8 |
| Integrated Analogue Inputs | 4 |
| Input Type | THERMOCOUPLE/RTD |
| Applicable RTD Type | PT100,JPT100,PT1000 |
| Applicable Thermocouple Type | K,J,R,S,E,T,B,N,PLII,U,L |
| Integrated Digital Outputs | 4 |
| Depth (mm) | 86 |
|---|---|
| Weight (kg) | 0,4 |
| Width (mm) | 90 |
| Height (mm) | 90 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 83 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 1317-36-8, 1303-86-2, 7439-92-1, 79-94-7 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
