Material number 165271

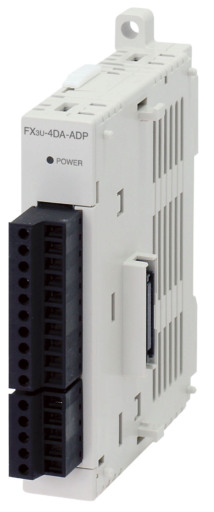

PLC, FX3U Analog output module; 12 bit; 4 analog outputs for current or voltage
| Series | MELSEC-F SERIES |
|---|---|
| Type | FX3U |
| Power Supply (V) | 24 |
| Current Type | DC |
| Integrated Analogue Outputs | 4 |
| Output Voltage Range (V) | 0-10 |
| Output Current Range (mA) | 4-20 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
| Depth (mm) | 89,5 |
|---|---|
| Weight (kg) | 0,1 |
| Width (mm) | 17,6 |
| Height (mm) | 90 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,KR,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 51 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1, 2451-62-9, 1303-86-2 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
