Material number 169509

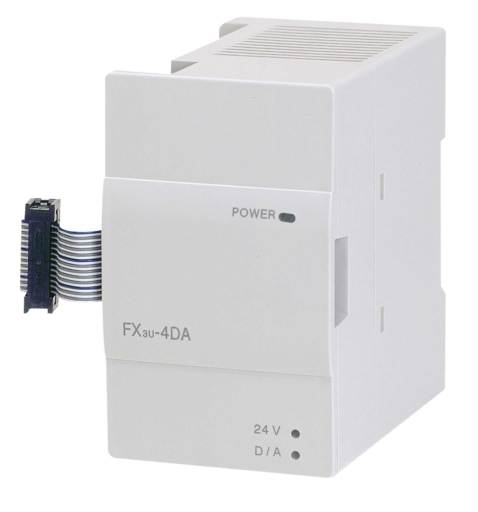

PLC, FX3U Analog output module; 16 bit; 4 analog outputs for current or voltage
| Series | MELSEC-F SERIES |
|---|---|
| Type | FX3U |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied I/O Points on PLC | 8 |
| Integrated Analogue Outputs | 4 |
| Output Voltage Range (V) | 0-10 |
| Output Current Range (mA) | 4-20 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
| Depth (mm) | 87 |
|---|---|
| Weight (kg) | 0,2 |
| Width (mm) | 55 |
| Height (mm) | 90 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 37,9 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 9,9 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1, 2451-62-9, 71868-10-5 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
