Material number 237263

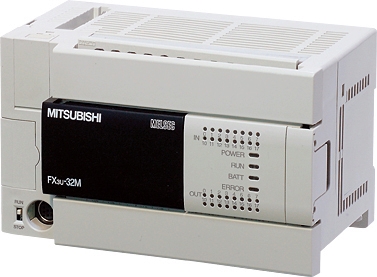

PLC, FX3U Base Unit AC 100-240 V; 16 inputs DC 24V; 16 triac outputs
| Type | FX3U |
|---|---|
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Program Memory | 64K STEPS |
| Program Memory Unit | RAM |
| Integrated Digital Inputs | 16 |
| Integrated Digital Outputs | 16 |
| Output Type | TRIAC |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 384 |
| Expandable | YES |
| Cycle Time LD (ns) | 65 |
| Cycle Time MOV (ns) | 642 |
| RS-422 | 1 |
| Power Consumption (W) | 35 |
| Buffer Battery | YES |
| Protection Class | IP10 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
| Series | MELSEC-F SERIES |
| Depth (mm) | 86 |
|---|---|
| Weight (kg) | 0,65 |
| Width (mm) | 150 |
| Height (mm) | 90 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 106,5 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
