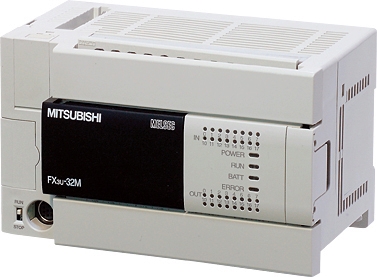

    231499-FX3U-32MR/DS

    231499 - FX3U-32MR/DS

    Material number 231499

    PLC, FX3U Base Unit DC 24 V: 16 inputs DC 24 V; 16 relay outputs

    Request for Quote Add to List
    FA-COM PLC: MAIN UNIT
    Type FX3U
    Power Supply (V) 24
    Current Type DC
    Program Memory 64K STEPS
    Program Memory Unit RAM
    Integrated Digital Inputs 16
    Integrated Digital Outputs 16
    Output Type RELAY
    Local I/O Points 256
    Local + Remote I/O Points 384
    Expandable YES
    Cycle Time LD (ns) 65
    Cycle Time MOV (ns) 642
    USB OPTION
    RS-422 1
    Power Consumption (W) 30
    Buffer Battery YES
    Protection Class IP10
    Min. Ambient Temperature (°C) 0
    Max. Ambient Temperature (°C) 55
    Series MELSEC-F SERIES
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 86
    Weight (kg) 0,65
    Width (mm) 150
    Height (mm) 90
    CONFORMITY
    CE COMPLIANT
    Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 106
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 0
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 71868-10-5, 119-47-1, 1303-86-2, 1317-36-8, 2451-62-9, 25155-23-1, 26523-78-4, 7439-92-1, 79-94-7
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
