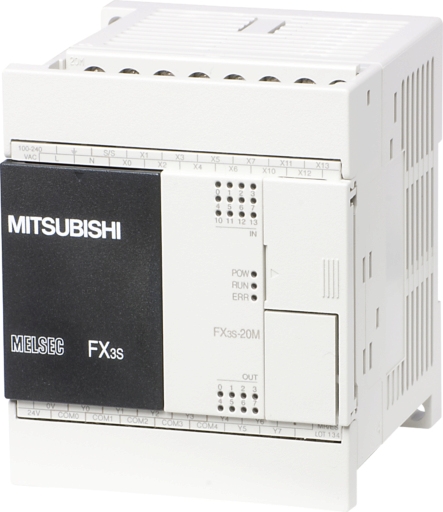

    267127-FX3S-20MT/ES

    267127 - FX3S-20MT/ES

    Material number 267127

    FX3S Base Unit AC100-240V;12 Inputs DC24V;8 Transistor Outputs (sink)

    Request for Quote Add to List
    FA-COM PLC: MAIN UNIT
    Type FX3S
    Power Supply (V) 100-240
    Current Type AC
    Program Memory 16K STEPS
    Program Memory Unit EEPROM
    Integrated Digital Inputs 12
    Integrated Digital Outputs 8
    Output Type TRANSISTOR
    Output Logic SINK
    Local I/O Points 30
    Local + Remote I/O Points 30
    Expandable NO
    Cycle Time LD (ns) 210
    Cycle Time MOV (ns) 500
    USB 1
    RS-422 1
    Power Consumption (W) 20
    Buffer Battery NO
    Protection Class IP10
    Min. Ambient Temperature (°C) 0
    Max. Ambient Temperature (°C) 55
    Series MELSEC-F SERIES
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 75
    Weight (kg) 0,349
    Width (mm) 75
    Height (mm) 90
    CONFORMITY
    CE COMPLIANT
    Shipping Approvals ABS,BV,DNV GL,LR,NK
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 73
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 0
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
