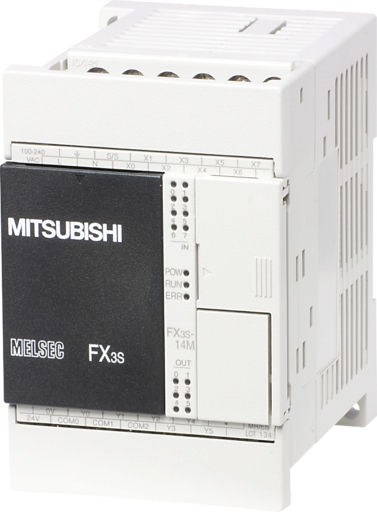

Material number 267125
FX3S Base Unit AC100-240V;8 Inputs DC24V;6 Transistor Outputs (source)
| Type | FX3S |
|---|---|
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Program Memory | 16K STEPS |
| Program Memory Unit | EEPROM |
| Integrated Digital Inputs | 8 |
| Integrated Digital Outputs | 6 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Local I/O Points | 30 |
| Local + Remote I/O Points | 30 |
| Expandable | NO |
| Cycle Time LD (ns) | 210 |
| Cycle Time MOV (ns) | 500 |
| USB | 1 |
| RS-422 | 1 |
| Power Consumption (W) | 19 |
| Buffer Battery | NO |
| Protection Class | IP10 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
| Series | MELSEC-F SERIES |
| Depth (mm) | 75 |
|---|---|
| Weight (kg) | 0,3 |
| Width (mm) | 60 |
| Height (mm) | 90 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,LR,NK |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 73 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1, 1317-36-8, 2451-62-9, 119-47-1 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
