Material number 153740

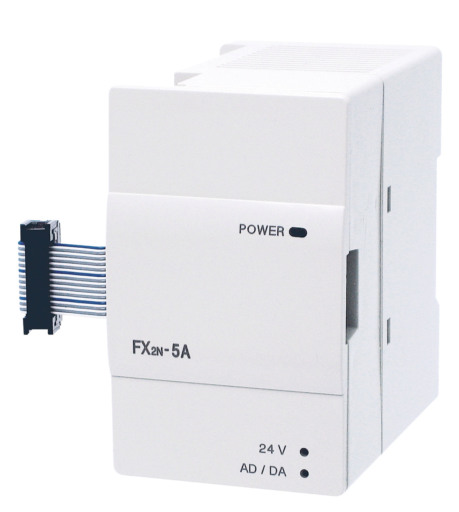

PLC, FX2N Analog modul; 4 analog inputs, 16 bits; 1 analog output, 12 bits
| Series | MELSEC-F SERIES |
|---|---|
| Type | FX2N |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied I/O Points on PLC | 8 |
| Integrated Analogue Inputs | 4 |
| Integrated Analogue Outputs | 1 |
| Input Voltage Range (V) | -10-10; -0,1-0,1 |
| Input Current Range (mA) | -20-20; 4-20 |
| Output Voltage Range (V) | -10-10 |
| Output Current Range (mA) | 0-20; 4-20 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
| Depth (mm) | 87 |
|---|---|
| Weight (kg) | 0,3 |
| Width (mm) | 55 |
| Height (mm) | 90 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | BV,DNV GL,RINA |
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 71 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
