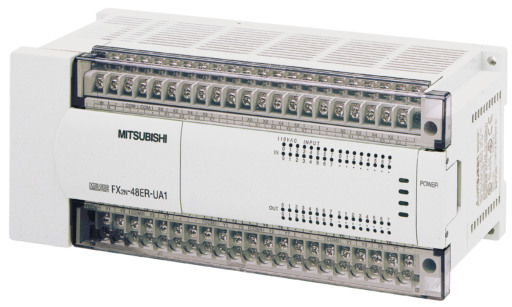

Material number 103704
24 inputs (110V AC), 24 relay outputs, 100-240V AC supply
| Series | MELSEC-F SERIES |
|---|---|
| Type | FX2N |
| Occupied I/O Points on PLC | 48 |
| Integrated Digital Inputs | 24 |
| Integrated Digital Outputs | 24 |
| Output Type | RELAY |
| Depth (mm) | 87 |
|---|---|
| Weight (kg) | 1 |
| Width (mm) | 220 |
| Height (mm) | 90 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,KR |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 187,2 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 11120-22-2, 2451-62-9, 7439-92-1, 1317-36-8 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
