    102868-FX2N-2DA

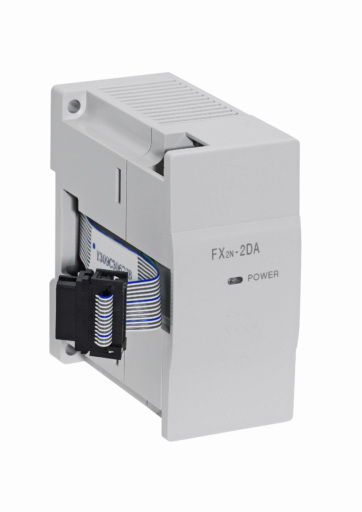

    102868 - FX2N-2DA

    Material number 102868

    PLC, FX2N Analog output module; 12 bit; 2 analog outputs

    Request for Quote Add to List
    FA-COM PLC: ANALOGUE I/O MODULE
    Series MELSEC-F SERIES
    Type FX2N
    Occupied I/O Points on PLC 8
    Integrated Analogue Outputs 2
    Output Voltage Range (V) 0-10; 0-5
    Output Current Range (mA) 4-20
    Min. Ambient Temperature (°C) 0
    Max. Ambient Temperature (°C) 55
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 87
    Weight (kg) 0,3
    Width (mm) 43
    Height (mm) 90
    CONFORMITY
    CE COMPLIANT
    Shipping Approvals ABS,DNV GL,KR,NK
    EAC COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 50
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 0
    Wood (g) 0
    Other paper (g) 17,8
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
