Material number 305026

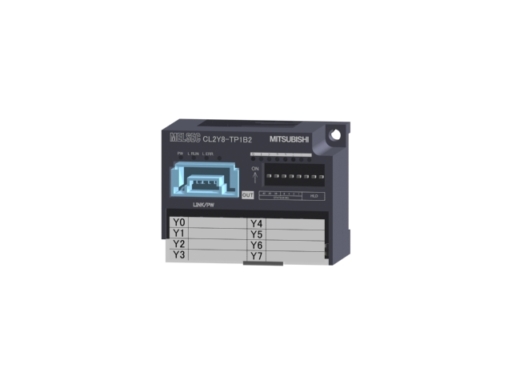

CC-Link/LT transistor output module; 8 points 12/24 VDC sink, screw type, 2-wire
| Series | CC-LINK/LT |
|---|---|
| Type | TRANSISTOR OUTPUT (SINK) |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Outputs | 8 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Rated Load Voltage (VDC) | 12/24 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,04 |
| Depth (mm) | 40 |
|---|---|
| Weight (kg) | 0,09 |
| Width (mm) | 64 |
| Height (mm) | 49 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
