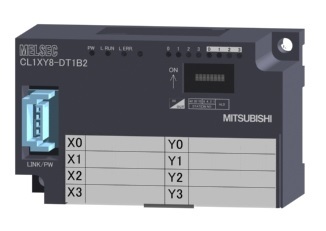

Material number 243639
PLC CC-Link/LT I/O module; 4 inputs 24 VDC; 4 relay outputs; screw type; 2-wire
| Series | CC-LINK/LT |
|---|---|
| Type | REMOTE I/O COMBINED MODULE |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 4, 8, 16 (POINT MODE: 1) |
| Integrated Digital Inputs | 4 |
| Integrated Digital Outputs | 4 |
| Rated Input Voltage (VDC) | 24 |
| Rated Load Voltage (VAC) | 240 |
| Rated Load Voltage (VDC) | 30 |
| Output Type | RELAY |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,7 |
| Depth (mm) | 40 |
|---|---|
| Weight (kg) | 0,11 |
| Width (mm) | 80 |
| Height (mm) | 49 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 551,1 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 4,9 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
