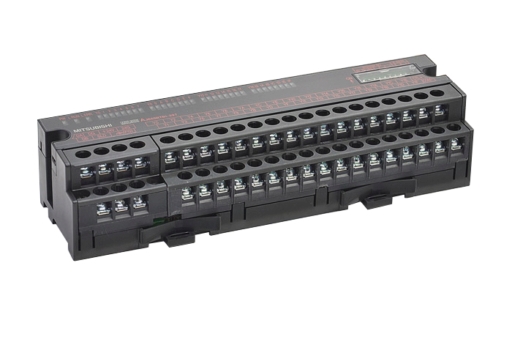

Material number 138957
PLC CC-Link compact I/O module; 32 output; sink; 0.5A; screw type
| Series | CC-LINK |
|---|---|
| Type | REMOTE TRANSISTOR OUTPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Outputs | 32 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Rated Load Voltage (VDC) | 12-24 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,065 |
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Width (mm) | 179 |
|---|---|
| Height (mm) | 50 |
| Depth (mm) | 40 |
| Weight (kg) | 0,25 |
| Serial No. on the Box | QR1 |
|---|
| Selling Status | Standard |
|---|
| Cardboard (g) | 38 |
|---|---|
| Other paper (g) | 9 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 3 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 119-47-1, 7439-92-1, 71868-10-5 |
| Dangerous Goods Class | NO |
| Dangerous Goods Identifier | NO |
| RoHS Compliance | COMPLIANT |
| WEEE | B2B |
