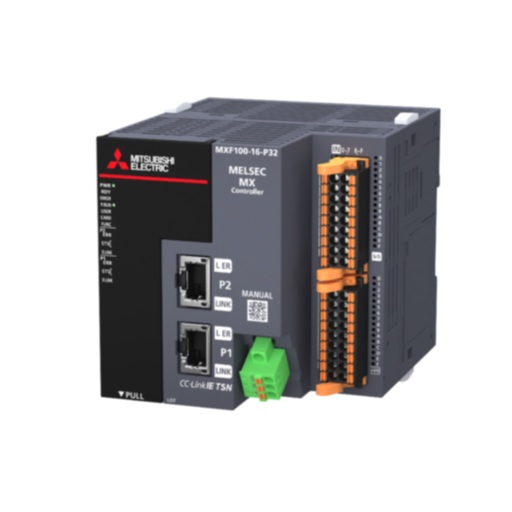

Material number 733092
MX-F CPU Module,16 Motion Axes,16 Input,16 Transistor Output source,USB-C,TSN,SD
| Type | MX-F CONTROLLER |
|---|---|
| Power Supply (V) | 24 |
| Current Type | DC |
| Program Memory | 30M BYTES |
| Integrated Digital Inputs | 16 |
| Integrated Digital Outputs | 16 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Cycle Time MOV (ns) | 1.25 |
| USB | 1 |
| Ethernet Port | 1 |
| Power Consumption (W) | 13.6 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
| Series | MX-F |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 123 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 7 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
