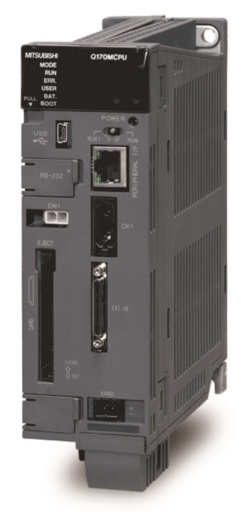

Material number 221835
STAND ALONE MOTION CONTROLLER
| Number of Axes | 16 |
|---|---|
| RS-232 | 1 |
| Outputs | 2 |
| Type | MOTION CPU |
| Program Capacity | 20K |
| Command Interface | SSCNET III |
| USB | 1 |
| Ethernet Port | 1 |
| Inputs | 4 |
| Program Capacity Unit | STEPS |
| Series | MELSEC-Q SERIES |
| Depth (mm) | 135 |
|---|---|
| Weight (kg) | 0,9 |
| Width (mm) | 52 |
| Height (mm) | 178 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 195 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 60 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 119313-12-1, 71868-10-5, 110-71-4, 3147-75-9, 7439-92-1, 80-05-7 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
