Material number 250394

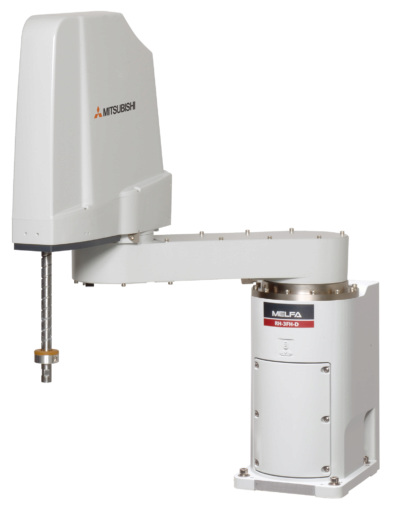

Industrial Robot RH-3FH-Q 4-axis; +/- 0,02mm; 3kg; 550/150mm; incl. CR751
| Series | RH-F SERIES |
|---|---|
| Payload (kg) | 3 |
| Cycle Time (s) | 0,51 |
| Repeatability (mm) | 0,012 |
| Operating Range J1 (deg) | 340 |
| Controller Type | CR751-Q |
| Installation Method | FLOOR |
| Protection Class | IP20 |
| Power Consumption (VA) | 500 |
| Max. Reach Radius (mm) | 550 |
| Operating Range J4 (deg) | 720 |
| Operating Range J2 (deg) | 290 |
| Type | SCARA |
| Z Axis Stroke (mm) | 150 |
| Environment specification | STANDARD |
| Speed (mm/s) | 8300 |
| Power Supply (VAC) | 180-253 |
| Depth (mm) | 765 |
|---|---|
| Weight (kg) | 32 |
| Width (mm) | 174 |
| Height (mm) | 773 |
| CE | COMPLIANT |
|---|---|
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 500 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 26900 |
| Steel (g) | 70 |
| Glass (g) | 0 |
| Other plastic (g) | 1092,22 |
| Wood (g) | 0 |
| Other paper (g) | 120 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 556-67-2, 7439-92-1, 1317-36-8, 1303-86-2, 117-81-7, 110-71-4, 101-14-4 |
| RoHS Compliance | NOT IN SCOPE |
| Dangerous Goods Class | 9 |
| WEEE | B2B |
