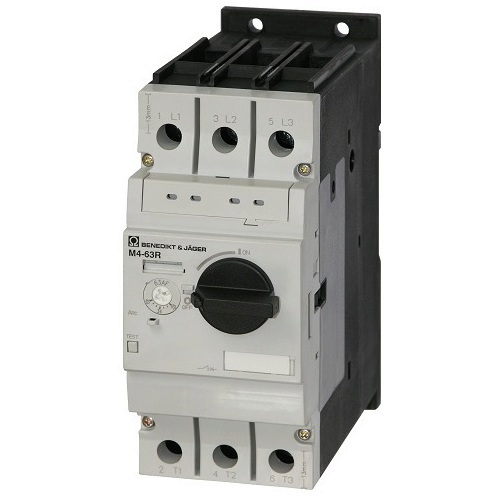

Material number 226669
Motor prot. switch. 22,00kW; Ir=34,00 ~ 50,00A; In-Tr. 650,0A; Icu AC 400V=50kA
| Series | M4 SERIES |
|---|---|
| Type | MOTOR CIRCUIT BREAKERS |
| Compliant with Standard(s) | EN 60947-2, EN 60947-4-1, IEC 60947-2, IEC 60947-4-1, VDE 0660 |
| Frame Size | 63 |
| Number of Poles | 3 |
| Rated Current (A) | 50 |
| Rated Voltage (V) | 690 |
| Frequency Range (Hz) | 50/60 |
| Rated Capacity (kW) | 22 |
| Heater Designation (A) | 50 |
| Range of Setting Current (A) | 34-50 |
| Breaking Capacity at 415V (kA) | 50 |
| Electrical Durability (Load) | 25000 OPERATIONS |
| Mech. Durability (at no Load) | 50000 OPERATIONS |
| Wiring | SCREW-CLAMP |
| Automatic Tripping Device | THERMAL-MAGNETIC (ADJUSTABLE) |
| Depth (mm) | 144 |
|---|---|
| Weight (kg) | 1 |
| Width (mm) | 55 |
| Height (mm) | 140 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 68 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
