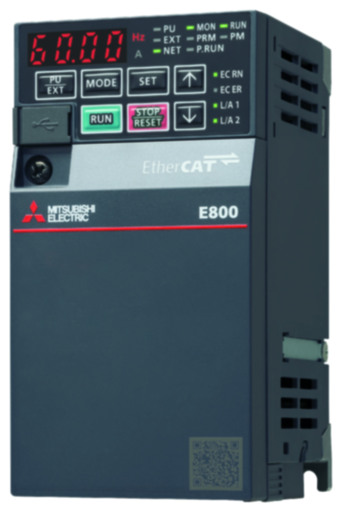

Material number 733614
Inverter; Pn:0,1kW; 1x200-240V; In max:0,8A; (0,1kW;0,8A);EtherCAT;SIL3; IP20
| Series | FR-E800 SERIES |
|---|---|
| Type | FR-E800-ETH SAFETY CONTROL |
| Minimum Rated Voltage (V) | 200 |
| Min. Permissible Voltage (V) | 170 |
| Maximum Rated Voltage (V) | 240 |
| Max. Permissible Voltage (V) | 264 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 0,8 |
| Rated Motor Capacity ND (kW) | 0,1 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | MAGNETIC FLUX VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, REAL SENSORLESS VECTOR CONTROL, V/F CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 2K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 0 |
| Digital Outputs (Transistor) | 0 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 0 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | NO |
| USB | 1 (MINI B) |
| Ethernet Port | 2 |
| Built-In Network | EtherCAT |
| Leakage Current (mA) | 1,2 |
| Power Loss ND (W) | 12 |
| Protection Class | IP20 |
| CE | COMPLIANT |
|---|
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
