Material number 247891

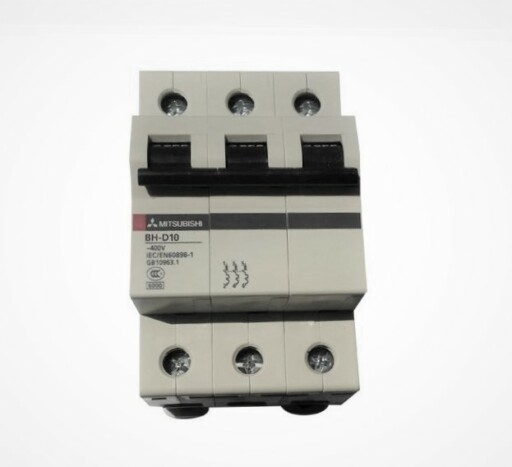

Miniature circuit breaker 16 A, 3 pole, Type C
| Series | WS-V SERIES - MCB |
|---|---|
| Type | BH-D MINI. CIRCUIT BREAKER |
| Rated Current (A) | 16 |
| Rated Voltage (V) | 400 |
| Current Type | AC |
| Number of Poles | 3 |
| Instantaneous Tripping | TYPE C |
| Breaking Capacity at 415V (kA) | 10 |
| Cycles with Rated Current | 10000 |
| Cycles without Rated Current | 10000 |
| Compliant with Standard(s) | IEC 60898-1 |
| Depth (mm) | 70 |
|---|---|
| Weight (kg) | 0,45 |
| Width (mm) | 54 |
| Height (mm) | 87 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 51 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2C |
| Dangerous Goods Identifier | NO |
