Material number 298606

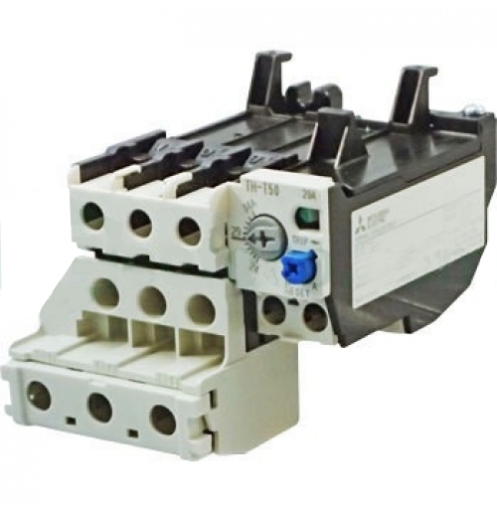

Overload Relay. Ith = 30,0 ~ 40,0A; for S(D)-T35, 50
| Series | MS-T THERMAL OVERLOAD RELAY |
|---|---|
| Type | WITH 3-ELEMENT (2E) |
| Heater Designation (A) | 35 |
| Range of Setting Current (A) | 30 - 40 |
| Rated Capacity (kW) | 3-PHASE 220-240V: -, 3-PHASE 380-440V: 18.5, 19 |
| Rated Voltage (V) | 690 |
| Frequency Range (Hz) | 0(DC) - 400 |
| Min. Ambient Temperature (°C) | -10 |
| Max. Ambient Temperature (°C) | +40 |
| No of Auxiliary Contacts NO | 1 |
| No of Auxiliary Contacts NC | 1 |
| Depth (mm) | 83,5 |
|---|---|
| Weight (kg) | 0,2 |
| Width (mm) | 74,3 |
| Height (mm) | 72 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 200 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 10 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
