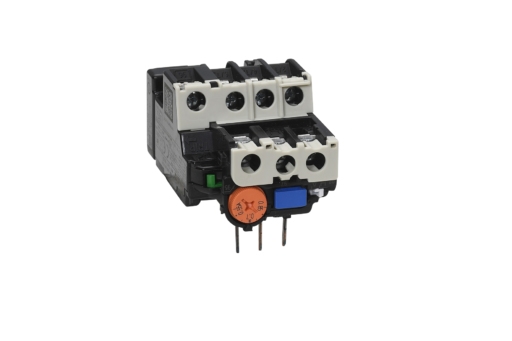

    279294-TH-T18KPCX 6.6A

    279294 - TH-T18KPCX 6.6A

    Material number 279294

    Overload Relay. Ith = 5,2 ~ 8,0A; for S(D)-T10, 12, 20

    Request for Quote Add to List
    FA-MC: OVERLOAD PROTECTION RELAYS
    Series MS-T THERMAL OVERLOAD RELAY
    Type WITH 3-ELEMENT (2E)
    Heater Designation (A) 6.6
    Range of Setting Current (A) 5.2 - 8
    Rated Capacity (kW) 3-PHASE 220-240V: 1,5, 3-PHASE 380-440V: 3, 3.7
    Rated Voltage (V) 690
    Frequency Range (Hz) 0(DC) - 400
    Min. Ambient Temperature (°C) -10
    Max. Ambient Temperature (°C) +40
    No of Auxiliary Contacts NO 1
    No of Auxiliary Contacts NC 1
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 76,5
    Weight (kg) 0,11
    Width (mm) 45
    Height (mm) 55
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 200
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 0
    Wood (g) 0
    Other paper (g) 10
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
