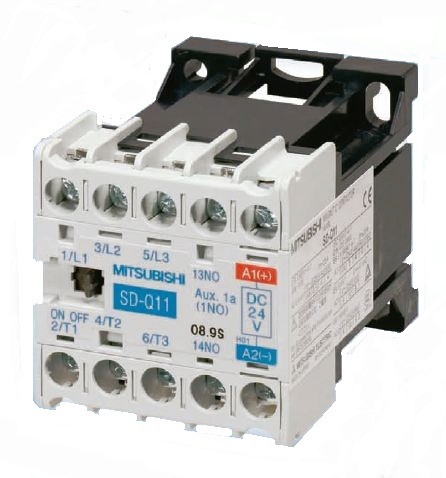

Material number 194064
DC Interface Contactor; 4,0kW; 1NC; Us = DC 24V
| Series | MS-N SERIES MAGNETIC CONTACTOR |
|---|---|
| Type | NON-REVERSING, DC OPERATED |
| Frame Size | 11 |
| Current Type | DC TYPE |
| Coil Voltage (V) | 24 |
| Rated Current (A) | 3-PHASE AC380-440V: 9 |
| Rated Capacity (kW) | 3-PHASE AC220-240V: 3, 3-PHASE AC380-440V: 4 |
| Rated Voltage (V) | 690 |
| Number of Poles | 3 |
| No of Auxiliary Contacts NC | 1 |
| Frequency Range (Hz) | 50/60 |
| Min. Ambient Temperature (°C) | -10 |
| Max. Ambient Temperature (°C) | 40 |
| Wiring | SCREW-CLAMP |
| Design / Styling | STANDARD |
| Compliant with Standard(s) | EN60947-4-1, IEC60947-4-1, JIS C8201-4-1 |
| Mech. Durability (at no Load) | 10 000 000 OPERATIONS |
| Protection Class | IP20 |
| Depth (mm) | 66,5 |
|---|---|
| Weight (kg) | 0,19 |
| Width (mm) | 45 |
| Height (mm) | 51 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 150 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 1 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 68-12-2, 872-50-4, 7439-92-1 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
