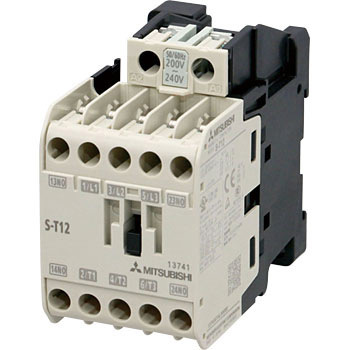

Material number 279218
Magnetic contactor. 5,5kW; 2NC; Us = AC 24V, 50Hz
| Series | MS-T SERIES MAGNETIC CONTACTOR |
|---|---|
| Type | NON-REVERSING, AC OPERATED |
| Frame Size | 12 |
| Current Type | AC TYPE |
| Coil Voltage (V) | 24 |
| Rated Current (A) | 3-PHASE AC690V: 7 |
| Rated Capacity (kW) | 3-PHASE AC220-240V: 3.5, 3-PHASE AC380-440V: 5.5, 3-PHASE AC690V: 5.5 |
| Number of Poles | 3 |
| No of Auxiliary Contacts NC | 2 |
| Wiring | SCREW-CLAMP |
| Design / Styling | STANDARD |
| Depth (mm) | 78 |
|---|---|
| Weight (kg) | 0,27 |
| Width (mm) | 43 |
| Height (mm) | 75 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 150 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 1 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
