Material number 113660

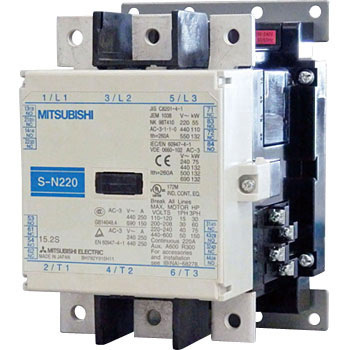

Magnetic contactor. 132kW; 2NO + 2NC; Us = AC 200V, 50Hz
| Series | MS-N SERIES MAGNETIC CONTACTOR |
|---|---|
| Type | NON-REVERSING, AC OPERATED |
| Frame Size | 220 |
| Current Type | AC TYPE |
| Coil Voltage (V) | 200-240 |
| Rated Current (A) | 3-PHASE AC690V: 150 |
| Rated Capacity (kW) | 3-PHASE AC220-240V: 75, 3-PHASE AC380-440V: 132, 3-PHASE AC690V: 132 |
| Rated Voltage (V) | 690 |
| Number of Poles | 3 |
| No of Auxiliary Contacts NO | 2 |
| No of Auxiliary Contacts NC | 2 |
| Frequency Range (Hz) | 50/60 |
| Min. Ambient Temperature (°C) | -10 |
| Max. Ambient Temperature (°C) | 40 |
| Wiring | SCREW-CLAMP |
| Design / Styling | STANDARD |
| Compliant with Standard(s) | EN60947-4-1, IEC60947-4-1, JIS C8201-4-1 |
| Electrical Durability (Load) | 1 000 000 OPERATIONS |
| Mech. Durability (at no Load) | 5 000 000 OPERATIONS |
| Protection Class | IP00 |
| Depth (mm) | 174 |
|---|---|
| Weight (kg) | 5,5 |
| Width (mm) | 138 |
| Height (mm) | 204 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 500 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 71868-10-5, 7439-92-1, 140-66-9, 80-05-7 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
