    MITSUBISHI ELECTRIC M4-63R-40

    M4-63R-40

    Material number 226668

    Motor prot. switch. 18,50kW; Ir=28,00 ~ 40,00A; In-Tr. 520,0A; Icu AC 400V=50kA

    Request for Quote Add to List
    FA-MMS: MANUAL MOTOR STARTER
    Series M4 SERIES
    Type MOTOR CIRCUIT BREAKERS
    Compliant with Standard(s) EN 60947-2, EN 60947-4-1, IEC 60947-2, IEC 60947-4-1, VDE 0660
    Frame Size 63
    Number of Poles 3
    Rated Current (A) 40
    Rated Voltage (V) 690
    Frequency Range (Hz) 50/60
    Rated Capacity (kW) 18,5
    Heater Designation (A) 40
    Range of Setting Current (A) 28-40
    Breaking Capacity at 415V (kA) 50
    Electrical Durability (Load) 25000 OPERATIONS
    Mech. Durability (at no Load) 50000 OPERATIONS
    Wiring SCREW-CLAMP
    Automatic Tripping Device THERMAL-MAGNETIC (ADJUSTABLE)
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 144
    Weight (kg) 1
    Width (mm) 55
    Height (mm) 140
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 68
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 0
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO

    Related Products

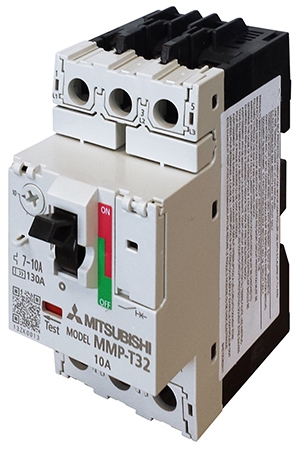

    600141-MMP-T32 0.4A
